Opis/specifikacija:

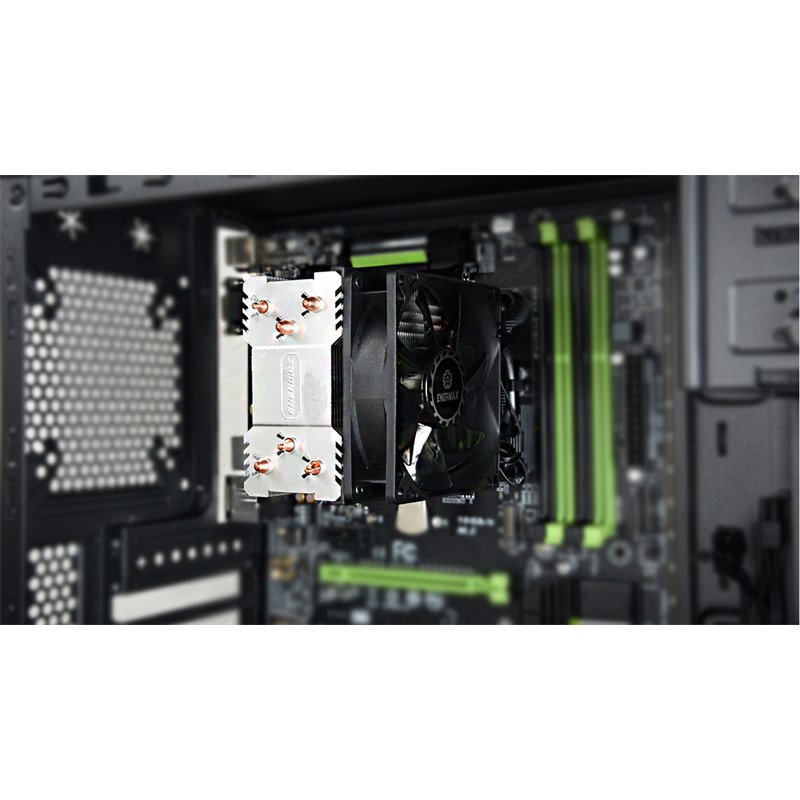

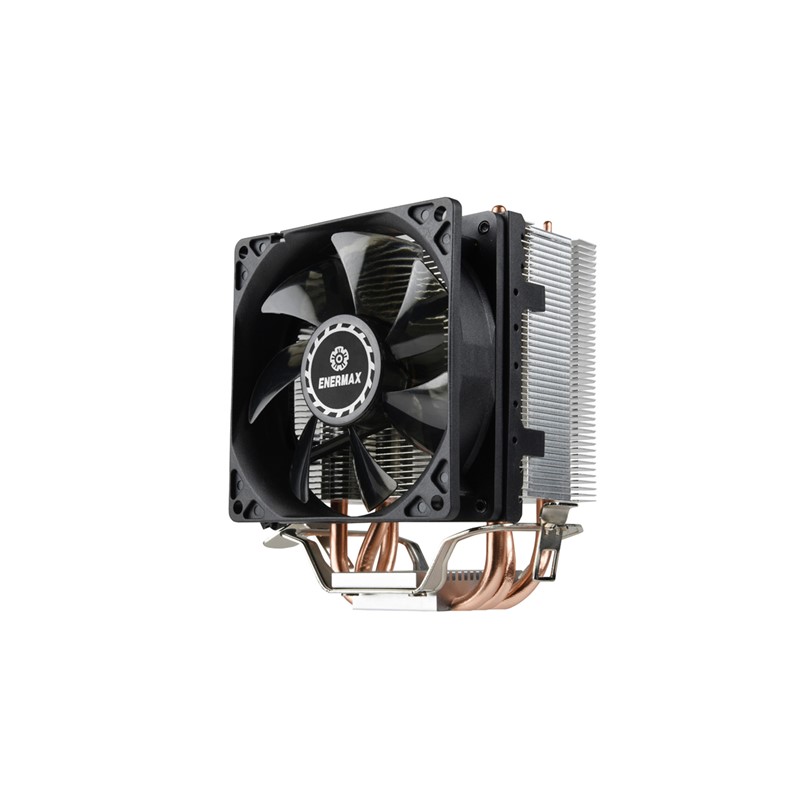

- The Enermax ETS-N31 is a tower cooler with 92mm fan designed to cool compact PC systems
- The cooler has a low profile of only 125mm and comes with a tool less top mounted installation system

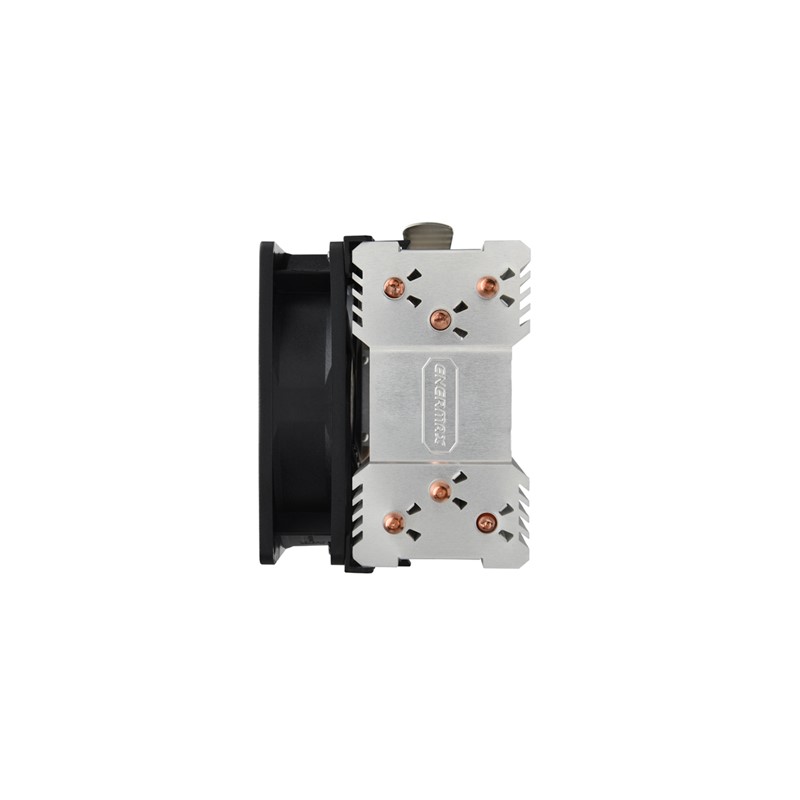

- The 3× O6mm heat pipes with Heat Pipe Direct Touch (HDT) and the air stream optimizations Vortex Generator Flow (VGF, patented) and Vacuum Effect Flow (VEF) work together to reach a cooling performance of 130W TDP

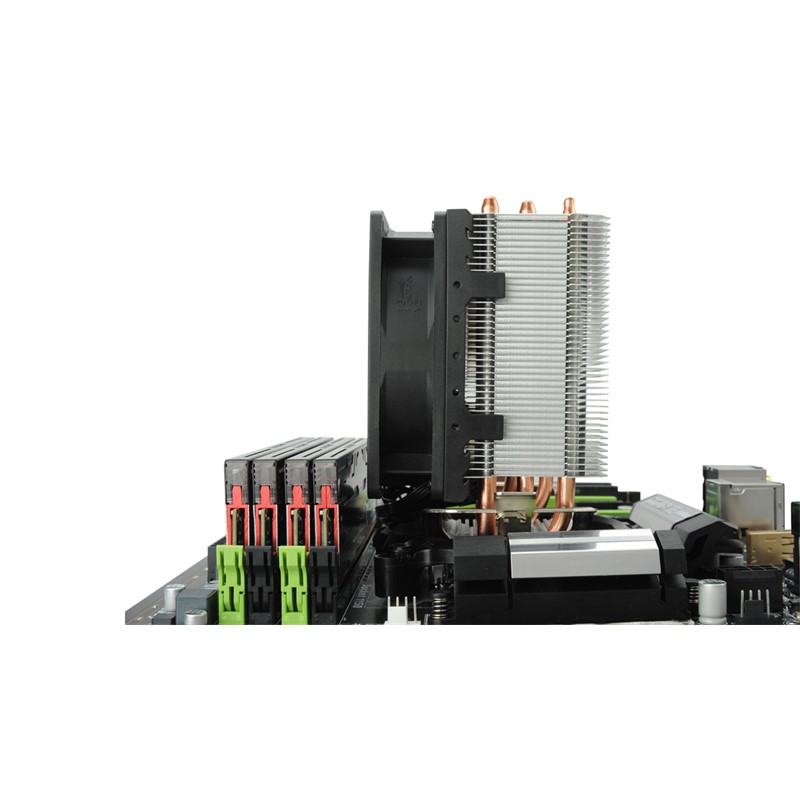

- The asymmetric heat pipe design provides the best compatibility with high RAM modules
- ETS-N31 supports all latest Intel and AMD sockets including AMD AM4
DESIGN
- Asymmetric Heat Pipe Array: The heat pipes are arranged in an asymmetric way, so that the cooler does not interfere with RAM modules
- Vortex Generator Flow (VGF): Small spoilers at the fins lead the air stream close along the heat pipes and cool them more efficiently
- Vacuum Effect Flow (VEF): Air vents at the side of the heat sink use the difference in pressure to increase the fresh air supply

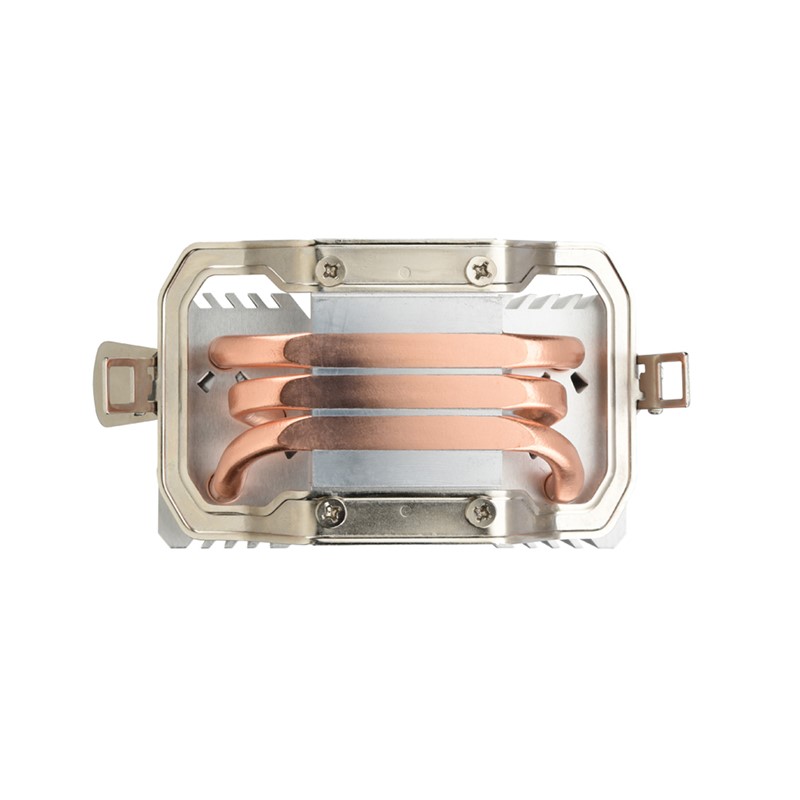

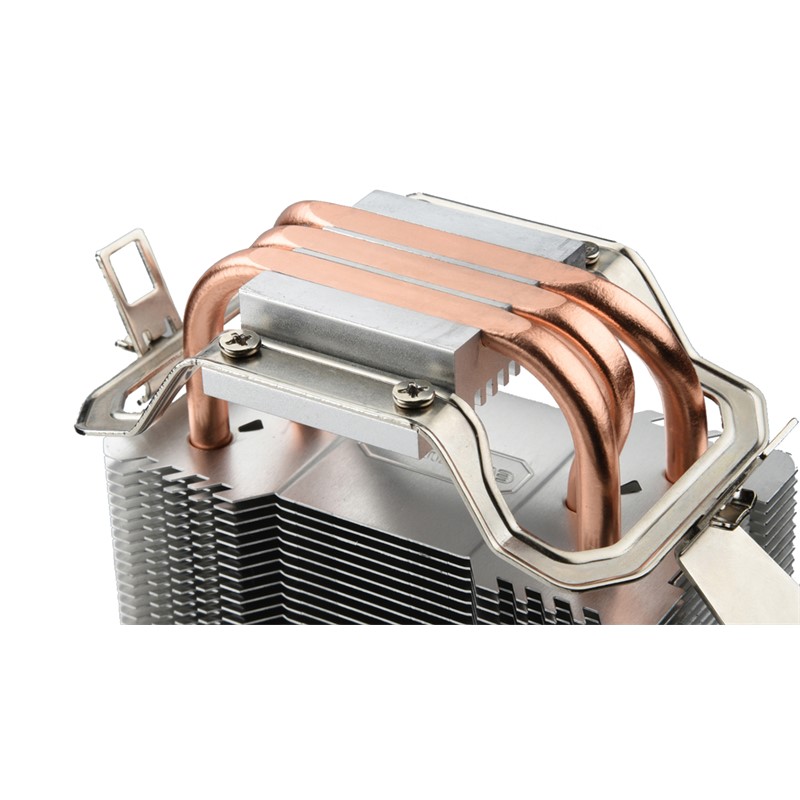

- Heat Pipe Direct Touch (HDT): The heat pipes rest directly on the CPU to dissipate heat more effectively with lower thermal resistance
FAN

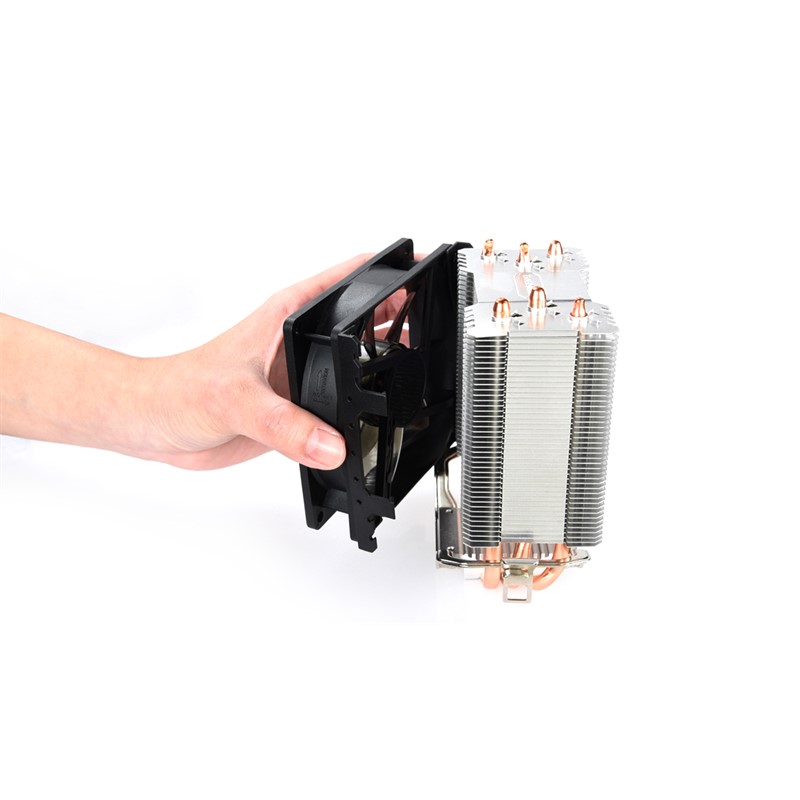

- 1-Click Fan Bracket: The ETS-N31 enables tool-less and hassle-free installation
* The fan can be removed easily for cleaning and maintenance
INSTALLATION
- Top Mounted Installation: The user-friendly mounting system allows a quick and easy installation from the top for AMD and Intel CPU sockets
- AM4 Compatible: The ETS-N31 is AMD AM4 compatible out of the box
Technical Specifications
OVERVIEW
- Intel compatible Sockets: LGA 775, 115x, 1366
- AMD compatible Sockets: FM1, FM2(+), AM2(+), AM3(+), AM4
- Overall Dimensions: 77.5×95×125 mm
- Overall Hight: 125mm
- Overall Weight: 385g
- Thermal Design Power (TDP): 130W+
- Thermal Grease: included
HEAT SINK
- Dimensions: 50×95×125 mm
- Material: Copper Heat Pipes/ Aluminium Fins
- Heat Pipes: 3× fi 6mm
FAN
- Fan Model: PWM Fan
- Bearing Type: Twister Bearing
- Fan Dimensions: 92×92×25 mm
- Fan Speed: 800 - 2000 RPM
- Rated Voltage: 12V
- Connector: 4-pin PWM
- Noise Level: 24.5dB(A)
- Air Flow: 22.29 - 55.72 m3/h
- Air Flow: 13.12 -32.80 CFM
- Static Pressure: 0.86 - 2.15 mm-H2O
OTHER

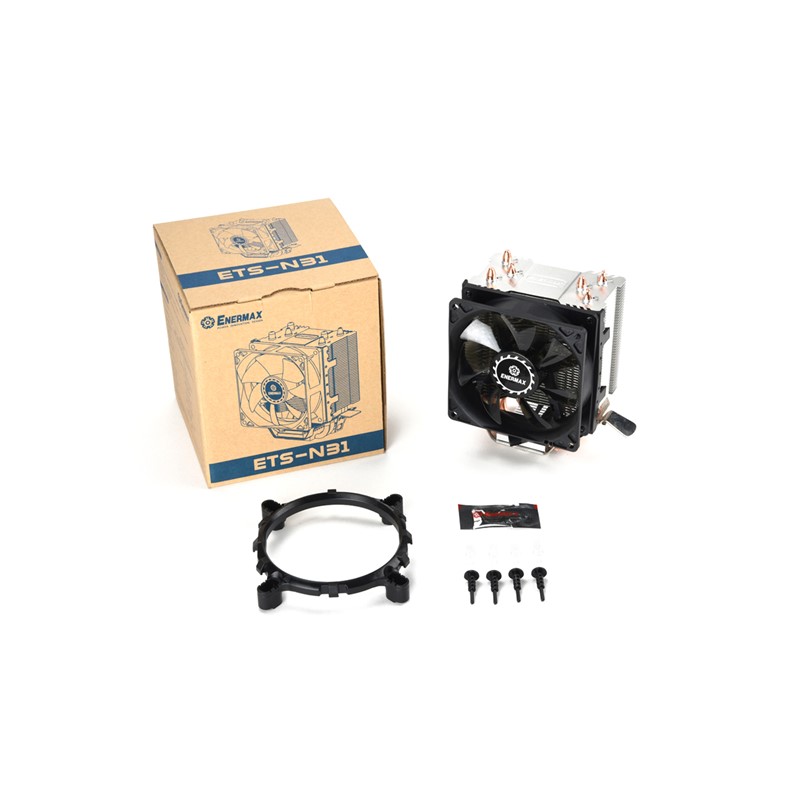

- Included in the delivery: Air Cooler, 9cm PWM fans, universal mounting kit for Intel and AMD sockets, thermal grease, installation guide
- Product Dimensions: 120×115×136 mm
- Product Weight: 485 g
