Opis/specifikacija:

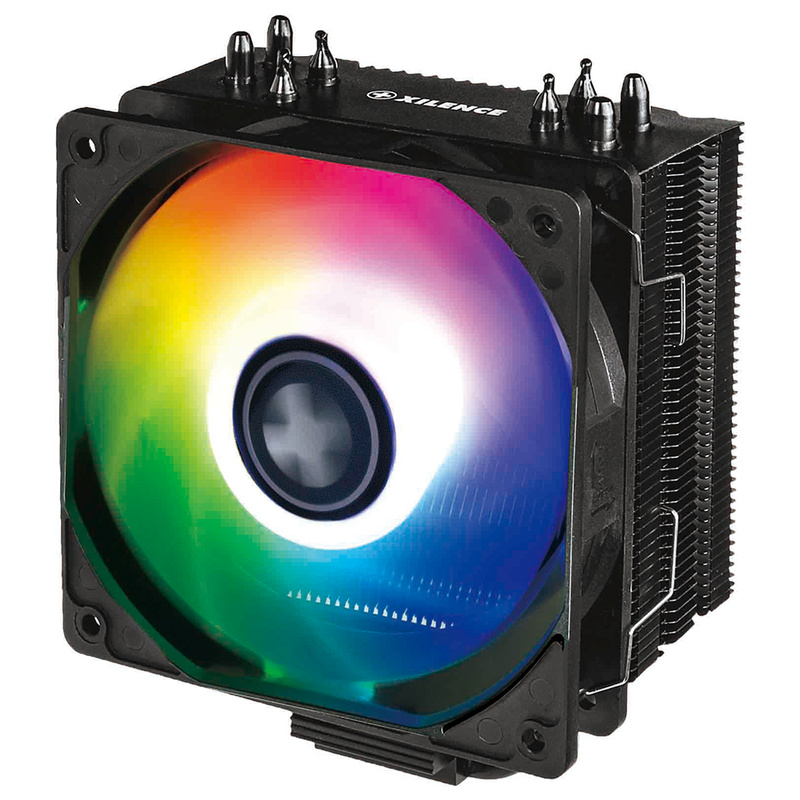

- The new M704RGB CPU cooler from the Performance A+ series brings light into the inside of the case
- In order to highlight the fan perfectly, the heatsink and also the heat pipes are designed in black
- It is the 120mm LED PWM fan however, that adds a splash of color
- With its 4PIN RGB M/B connector being linked to the equivalent connector on the mainboard, the fan’s color scheme can be controlled
- In case there is no such RGB M/B connector on the mainboard, the M704RGB offers the possibility to manage the color scheme via a mini controller (being powered via the S-ATA connector of the PSU)
- With this design and its specifications, the M704RGB cooler is especially appropriate for gaming systems
- Thanks to the multi-socket design, the cooler can be applied on all current AMD and Intel sockets
- Included in the scope of delivery is - besides heatsink and 120mm PWM fan - mounting material for sockets LGA1150/1151/1155/1156, LGA2066/2011/1200 and AM4/3+/3/2+/2 FM2+/2/1, illustrated assembly instructions as well as a tube of thermal paste
Features
- Silent, hydro bearing 120mm LED PWM-fan
- Black heat-sink
- Four black 6mm copper heat pipes for better heat flow
- Fin Design for high airflow and efficient cooling of the CPU and surrounding components
- Slight overhang of the fan avoids hotspots
- Possible mounting of the fan on both sides of the heat sink
- Suitable for all current AMD and INTEL sockets
Technical data
- Model: Performance A+ / M704RGB
- Overall dimensions without mounting material (L×W×H): 160×120×75 mm
- TDP: 180 W
- Socket compatibility:
* AMD: FM2+/FM1/FM2/AM4/AM3+/AM3/AM2+/AM2
* INTEL: LGA1150/1151/1155/1156/2011/2066/1200
- Overall noise level: 18.0 - 32.5 dB(A) @ 50/75/100% (rpm)
- Fin material: Aluminium
- Base material: Copper
- Heatpipe number / Diameter: 4 / 6 mm
- Fan dimensions: 120×120×25 mm
- Speed @ 100% PWM: 700 - 1.600 rpm +/-10%
- Bearing technology: Hydro Bearing
- Rated voltage: 12 V
- Connector: 4-pin
