Matična ploča Intel® B660 GAMING s 8+1+1 faznim hibridnim digitalnim VRM dizajnom*, potpuno pokrivena alu hladnjacima, 3 x PCIe 4.0/3.0 M.2 s Thermal Guardom, 2.5GbE LAN za igranje, prednjim USB 3.2 Gen 2 Type-C® , RGB FUSION 2.0, Q-Flash Plus ...

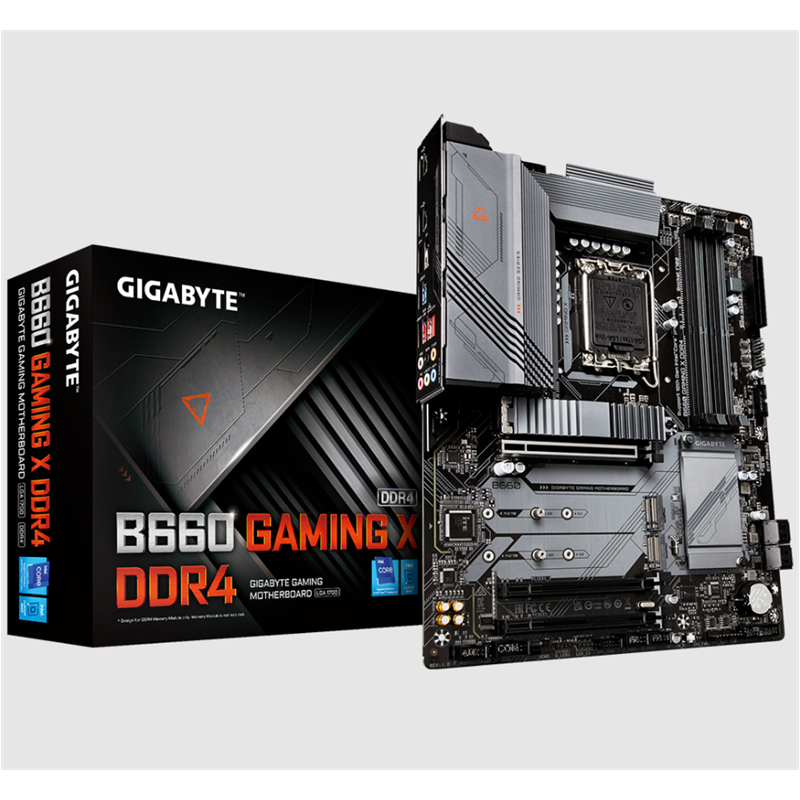

MODEL: Gigabyte B660 Gaming X
SOCKET: LGA1700
PODRŽANI PROCESORI: 12/13th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CHIPSET: Intel®B660 Express
MEMORIJA: 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
UTORI ZA PROŠIRENJE:
- 1 x PCI Express x16 slot, running at x16 (odgovara standardu PCI Express 4.0)
- 2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2)
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
AUDIO:
- Realtek® Audio CODEC
- High Definition Audio 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
DIMENZIJE: 30.5cm x 24.4 cm / ATX Form Factor
PODRŽANI OS: Microsoft® Windows® 10 / 11 64-bit
